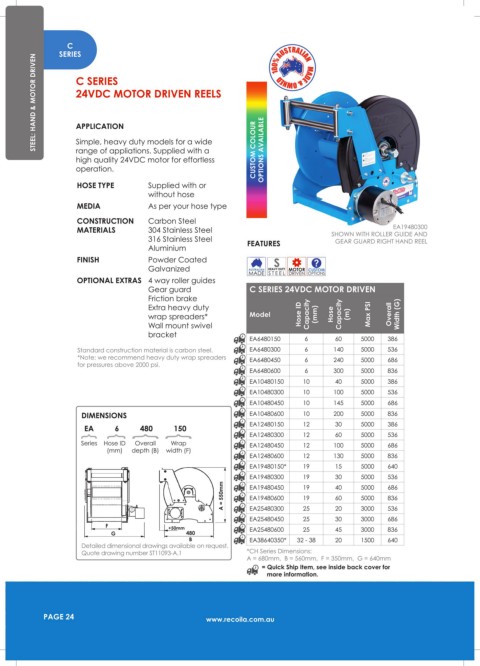

Page 24 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

C
SERIES
STEEL: HAND & MOTOR DRIVEN C SERIES

24VDC MOTOR DRIVEN REELS

APPLICATION
Simple, heavy duty models for a wide
range of appliations. Supplied with a
high quality 24VDC motor for effortless CUSTOM COLOUR OPTIONS AVAILABLE
operation.

HOSE TYPE Supplied with or
without hose
MEDIA As per your hose type

CONSTRUCTION Carbon Steel
EA19480300
MATERIALS 304 Stainless Steel SHOWN WITH ROLLER GUIDE AND
316 Stainless Steel FEATURES GEAR GUARD RIGHT HAND REEL
Aluminium
FINISH Powder Coated S ?
Galvanized AUSTRALIANAN HEAVY DUTY MOTOR MOTO CUSTOM
ST
AU
LI
RA
MADE
STEEL DRIVEN
OPTIONS

OPTIONAL EXTRAS 4 way roller guides
Gear guard C SERIES 24VDC MOTOR DRIVEN
Friction brake
Extra heavy duty
wrap spreaders* Model Hose ID Capacity (mm) Hose Capacity (m) Max PSI Overall Width (G)
Wall mount swivel
bracket
EA6480150 6 60 5000 386
Standard construction material is carbon steel. EA6480300 6 140 5000 536
*Note: we recommend heavy duty wrap spreaders EA6480450 6 240 5000 686
for pressures above 2000 psi.
EA6480600 6 300 5000 836
EA10480150 10 40 5000 386
EA10480300 10 100 5000 536
EA10480450 10 145 5000 686
DIMENSIONS EA10480600 10 200 5000 836
EA 6 480 150 EA12480150 12 30 5000 386
EA12480300 12 60 5000 536
{
{
{
Series Hose ID Overall Wrap EA12480450 12 100 5000 686
{
(mm) depth (B) width (F)
EA12480600 12 130 5000 836
EA19480150* 19 15 5000 640
EA19480300 19 30 5000 536
A = 550mm EA19480450 19 40 5000 686
836
19
5000
60
EA19480600
EA25480300
25
30
3000
686
EA25480450 25 20 3000 536
F +50mm EA25480600 25 45 3000 836
G 480
B EA38640350* 32 - 38 20 1500 640
Detailed dimensional drawings available on request.
Quote drawing number ST11093-A.1 *CH Series Dimensions:
A = 680mm, B = 560mm, F = 350mm, G = 640mm
= Quick Ship Item, see inside back cover for
more information.
PAGE 24 www.recoila.com.au
