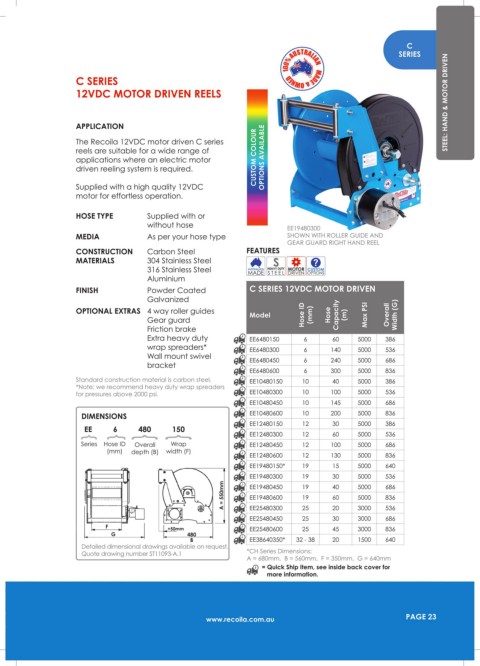

Page 23 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

C
SERIES

C SERIES
12VDC MOTOR DRIVEN REELS STEEL: HAND & MOTOR DRIVEN

APPLICATION
The Recoila 12VDC motor driven C series
reels are suitable for a wide range of
applications where an electric motor CUSTOM COLOUR OPTIONS AVAILABLE
driven reeling system is required.

Supplied with a high quality 12VDC
motor for effortless operation.

HOSE TYPE Supplied with or
without hose EE19480300
MEDIA As per your hose type SHOWN WITH ROLLER GUIDE AND
GEAR GUARD RIGHT HAND REEL
CONSTRUCTION Carbon Steel FEATURES
MATERIALS 304 Stainless Steel S ?
316 Stainless Steel AU ST RA LI HEAVY DUTY MOTOR MOTO CUSTOM
AUSTRALIANAN
MADE
OPTIONS
STEEL DRIVEN
Aluminium
FINISH Powder Coated C SERIES 12VDC MOTOR DRIVEN
Galvanized
OPTIONAL EXTRAS 4 way roller guides Model Hose ID Hose Capacity Overall Width (G)
Gear guard (mm) (m) Max PSI
Friction brake
Extra heavy duty EE6480150 6 60 5000 386
wrap spreaders* EE6480300 6 140 5000 536
Wall mount swivel EE6480450 6 240 5000 686
bracket
EE6480600 6 300 5000 836
Standard construction material is carbon steel. EE10480150 10 40 5000 386
*Note: we recommend heavy duty wrap spreaders
for pressures above 2000 psi. EE10480300 10 100 5000 536
EE10480450 10 145 5000 686
DIMENSIONS EE10480600 10 200 5000 836
EE12480150 12 30 5000 386
EE 6 480 150
EE12480300 12 60 5000 536
{
{
{
{
Series Hose ID Overall Wrap EE12480450 12 100 5000 686
(mm) depth (B) width (F) EE12480600 12 130 5000 836
EE19480150* 19 15 5000 640
EE19480300 19 30 5000 536
A = 550mm EE19480450 19 40 5000 686
EE19480600
60
19
836
5000
EE25480300
3000
686
30
25
EE25480450 25 20 3000 536
F +50mm EE25480600 25 45 3000 836
G 480
B EE38640350* 32 - 38 20 1500 640
Detailed dimensional drawings available on request.
Quote drawing number ST11093-A.1 *CH Series Dimensions:
A = 680mm, B = 560mm, F = 350mm, G = 640mm
= Quick Ship Item, see inside back cover for
more information.
www.recoila.com.au PAGE 23
