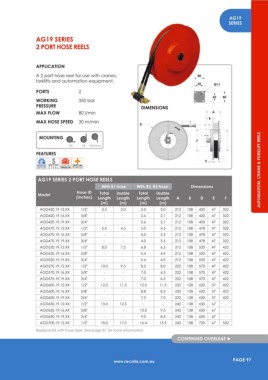

Page 99 - Catalogue2016

AG19
SERIES

AG19 SERIES

2 PORT HOSE REELS

APPLICATION

A 2 port hose reel for use with cranes, 80
forklifts and automation equipment.
60 O 11
PORTS 2
60 80
WORKING 350 bar
PRESSURE DIMENSIONS
MAX FLOW 80 l/min A
B
MAX HOSE SPEED 30 m/min
D

MOUNTING
F
OK OK Optional
FEATURES
S + E
QUALITY HEAVY DUTY CONSTANT SPECIAL
IMPORT STEEL TENSION PURPOSE AUTOMATION, CRANE & FORKLIFT REELS

AG19 SERIES 2 PORT HOSE REELS
With B1 hose With B2, B3 hose Dimensions
Model Hose ID Total Usable Total Usable
(inches) Length Length Length Length A B D E F
(m) (m) (m) (m)
AGD420.19.12.XX 1/2" 3.5 3.0 3.5 3.0 212 108 420 47 322
AGD420.19.16.XX 5/8" - - 2.6 2.1 212 108 420 47 322
AGD420.19.19.XX 3/4" - - 2.6 2.1 212 108 420 47 322
AGD470.19.12.XX 1/2" 5.0 4.5 5.0 4.5 212 108 478 47 322
AGD470.19.16.XX 5/8" - - 4.0 3.5 212 108 478 47 322
AGD470.19.19.XX 3/4" - - 4.0 3.5 212 108 478 47 322
AGD520.19.12.XX 1/2" 8.0 7.5 6.8 6.3 212 108 520 47 422
AGD520.19.16.XX 5/8" - - 5.4 4.9 212 108 520 47 422
AGD520.19.19.XX 3/4" - - 5.4 4.9 212 108 520 47 422
AGD570.19.12.XX 1/2" 10.0 9.5 8.5 8.0 222 108 570 47 422
AGD570.19.16.XX 5/8" - - 7.0 6.5 222 108 570 47 422
AGD570.19.19.XX 3/4" - - 7.0 6.5 222 108 570 47 422
AGD600.19.12.XX 1/2" 12.0 11.5 12.0 11.5 232 128 620 57 422
AGD600.19.16.XX 5/8" - - 8.8 8.3 232 128 620 57 422
AGD600.19.19.XX 3/4" - - 7.5 7.0 232 128 620 57 422
AGD650.19.12.XX 1/2" 13.0 12.5 - - 242 138 650 67 -
AGD650.19.16.XX 5/8" - - 10.0 9.5 242 138 650 67 -
AGD650.19.19.XX 3/4" - - 9.0 8.5 242 138 650 67 -
AGD700.19.12.XX 1/2" 18.0 17.5 16.4 15.9 242 138 720 67 532
Replace XX with hose type. See page 81 for more information.
CONTINUED OVERLEAF ►
