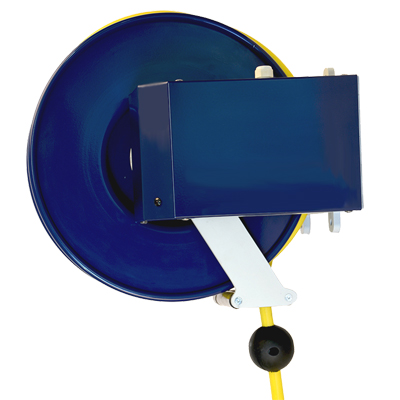

These reels are well suited to assembly lines and repetitive processes where ergonomic and manual handling issues are present. The ER Series features a constant low retraction speed for safer rewind and an enclosed circuit board allowing the reels to be used in wet and humid environments.
FEATURES & BENEFITS
MOTOR & TORQUE LIMITER
Allows you to pull out the hose with a constant low retraction force and to adjust optimal tension according to the weight of the hose you are using. Saves the motor as the torque limiter simply slips if the hose is restrained. Motor will then be switched off in a second or two.
240VAC - 24VDC TRANSFORMER
The ER Series reels are driven by heavy duty 24VDC motors that can be powered from standard batteries or from a 240VAC power supply with the transformer option.
ELECTRONIC LATCH SYSTEM
Pull out the exact length you need and stop. It’s as easy as that. There are no moving mechanical parts so you don’t have to search for the locking position. Hold the hose still for a second and the light turns off, confirming the motor is switched off.
The intelligence in the ER Series, the circuit board controls the functions of the motor through signals from a sensor on the side of the reel. Ready to accept both switch & remote control systems. An enclosed circuit board is standard on all Stainless Steel models, allowing the reel to be used in very wet and humid environments.
STAINLESS STEEL SHAFT & SWIVEL
Standard on all reels. No corrosion means less leakages and less maintenance.
You can connect the remote control directly to the circuit board. Allows you to control not only the rewinding and unwinding of the reel but also a number of other functions. Turning the media on/off, change of pressure. Mount the reel in the ceiling and call down the hose.
Connect a switch control to the circuit board and you can control rewinding and unwinding of the reel by simply pressing the button. Perfect when mounting the reel in the ceiling. Also available in an adjustable version allowing you to preset the hose length you require, eliminating tension completely.
Max Temp (degrees Celcius)
