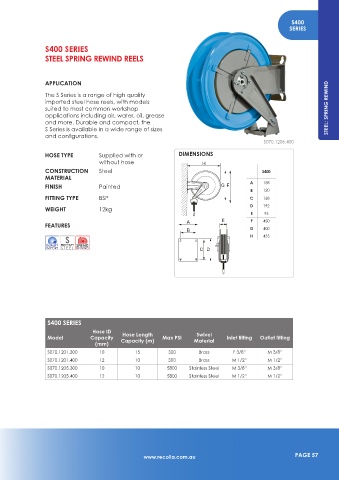

Page 59 - Recoila Hose and Cord Reels Catalogue - 23rd Edition
P. 59
S400
SERIES
S400 SERIES
STEEL SPRING REWIND REELS
APPLICATION
The S Series is a range of high quality
imported steel hose reels, with models
suited to most common workshop STEEL: SPRING REWIND
applications including air, water, oil, grease
and more. Durable and compact, the
S Series is available in a wide range of sizes
and configurations.
S070.1206.400
HOSE TYPE Supplied with or DIMENSIONS
without hose A E H
CONSTRUCTION Steel B S400
MATERIAL
FINISH Painted GF A 158
CD B 120
FITTING TYPE BSP C 168
WEIGHT 12kg D 192
E 95
FEATURES A E F H 450
B G 400
S H 435
QUALITY HEAVY DUTY SPRING GF
IMPORT STEEL REWIND CD
S400 SERIES
Hose ID
Model Capacity Hose Length Max PSI Swivel Inlet fitting Outlet fitting
(mm) Capacity (m) Material
S070.1201.300 10 15 300 Brass F 3/8” M 3/8”
S070.1201.400 12 10 300 Brass M 1/2” M 1/2”
S070.1205.300 10 10 5800 Stainless Steel M 3/8” M 3/8”
S070.1205.400 12 10 5800 Stainless Steel M 1/2” M 1/2”
www.recoila.com.au PAGE 57
