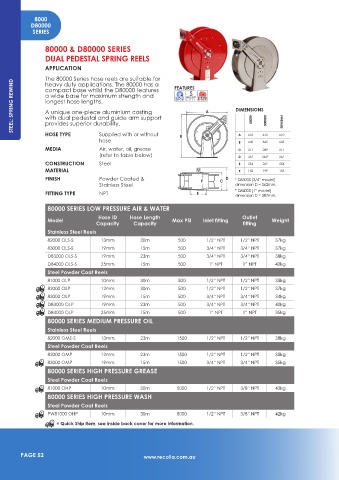

Page 54 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

8000
D80000
SERIES

80000 & D80000 SERIES

DUAL PEDESTAL SPRING REELS
APPLICATION
The 80000 Series hose reels are suitable for FEATURES
STEEL: SPRING REWIND a wide base for maximum strength and QUALITY HEAVY DUTY SPRING DIMENSIONS
heavy duty applications. The 80000 has a
compact base whilst the D80000 features
S
longest hose lengths.
IMPORT
STEEL REWIND
A
A unique one-piece aluminium casting
with dual pedestal and guide arm support
provides superior durability.
80000
D80000
PW81000
HOSE TYPE Supplied with or without B A 610 610 610
hose B 645 645 645
MEDIA Air, water, oil, grease C 211 289 211
(refer to table below) D 267 362* 267
CONSTRUCTION Steel E 254 267 254
MATERIAL F 152 199 153
FINISH Powder Coated & F C D * D83000 (3/4” model)
Stainless Steel dimension D = 362mm.
FITTING TYPE NPT E * D84000 (1” model)
dimension D = 387mm.
80000 SERIES LOW PRESSURE AIR & WATER
Hose ID Hose Length Outlet
Model Capacity Capacity Max PSI Inlet fitting fitting Weight
Stainless Steel Reels
82000 OLS-S 13mm 30m 500 1/2” NPT 1/2” NPT 37kg
83000 OLS-S 19mm 15m 500 3/4” NPT 3/4” NPT 37kg
D83000 OLS-S 19mm 23m 500 3/4” NPT 3/4” NPT 38kg
D84000 OLS-S 25mm 15m 500 1” NPT 1” NPT 42kg
Steel Powder Coat Reels
81000 OLP 10mm 30m 500 1/2” NPT 1/2” NPT 35kg
82000 OLP 12mm 30m 500 1/2” NPT 1/2” NPT 37kg
83000 OLP 19mm 15m 500 3/4” NPT 3/4” NPT 34kg
D83000 OLP 19mm 23m 500 3/4” NPT 3/4” NPT 40kg
D84000 OLP 25mm 15m 500 1” NPT 1” NPT 35kg
80000 SERIES MEDIUM PRESSURE OIL

Stainless Steel Reels
82000 OMS-S 13mm 23m 1500 1/2” NPT 1/2” NPT 38kg
Steel Powder Coat Reels
82000 OMP 12mm 23m 1500 1/2” NPT 1/2” NPT 35kg
83000 OMP 19mm 15m 1500 3/4” NPT 3/4” NPT 35kg
80000 SERIES HIGH PRESSURE GREASE
Steel Powder Coat Reels
81000 OHP 10mm 30m 5000 1/2” NPT 3/8” NPT 42kg
80000 SERIES HIGH PRESSURE WASH
Steel Powder Coat Reels
PW81000 OHP 10mm 30m 5000 1/2” NPT 3/8” NPT 42kg
= Quick Ship Item, see inside back cover for more information.
