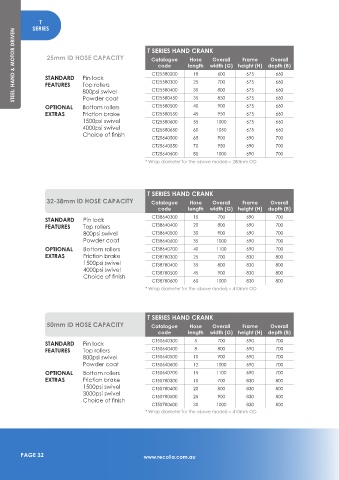

Page 34 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

T
SERIES
STEEL: HAND & MOTOR DRIVEN STANDARD Pin lock T SERIES HAND CRANK Overall Frame depth (B)

25mm ID HOSE CAPACITY
Overall
Hose
Catalogue
length
width (G) height (H)
code
660
CT25580200
18
675
600
25
CT25580300
660
675
700
FEATURES
Top rollers
675
660
850
35
CT25580450
Powder coat
900
OPTIONAL 800psi swivel CT25580400 30 800 675 660
40
660
CT25580500
675
Bottom rollers
EXTRAS Friction brake CT25580550 45 950 675 660
1500psi swivel CT25580600 55 1000 675 660
4000psi swivel CT25580650 60 1050 675 660
Choice of finish CT25640500 65 900 690 700
CT25640550 70 950 690 700
CT25640600 80 1000 690 700
* Wrap diameter for the above models = 280mm OD
T SERIES HAND CRANK
32-38mm ID HOSE CAPACITY Catalogue Hose Overall Frame Overall
code length width (G) height (H) depth (B)
STANDARD Pin lock CT38640300 15 700 690 700
FEATURES Top rollers CT38640400 20 800 690 700
800psi swivel CT38640500 30 900 690 700
Powder coat CT38640600 35 1000 690 700
OPTIONAL Bottom rollers CT38640700 40 1100 690 700
EXTRAS Friction brake CT38780300 25 700 830 800
1500psi swivel CT38780400 35 800 830 800
4000psi swivel CT38780500 45 900 830 800
Choice of finish
CT38780600 60 1000 830 800
* Wrap diameter for the above models = 410mm OD

T SERIES HAND CRANK
50mm ID HOSE CAPACITY Catalogue Hose Overall Frame Overall
code length width (G) height (H) depth (B)
STANDARD Pin lock CT50640300 5 700 690 700
FEATURES Top rollers CT50640400 8 800 690 700
800psi swivel CT50640500 10 900 690 700
Powder coat CT50640600 12 1000 690 700
OPTIONAL Bottom rollers CT50640700 15 1100 690 700
EXTRAS Friction brake CT50780300 10 700 830 800
1500psi swivel CT50780400 20 800 830 800
3000psi swivel CT50780500 25 900 830 800
Choice of finish
CT50780600 30 1000 830 800
* Wrap diameter for the above models = 410mm OD

PAGE 32 www.recoila.com.au
