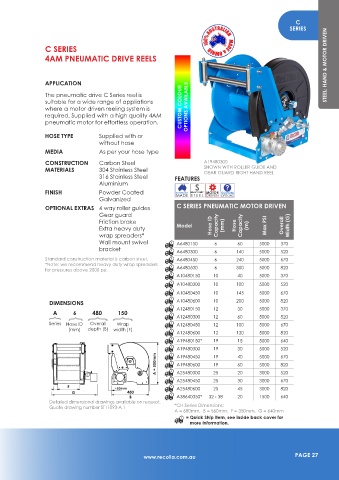

Page 29 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

C
SERIES

C SERIES

4AM PNEUMATIC DRIVE REELS STEEL: HAND & MOTOR DRIVEN

APPLICATION

The pneumatic drive C Series reel is
suitable for a wide range of appliations
where a motor driven reeling system is CUSTOM COLOUR OPTIONS AVAILABLE
required. Supplied with a high quality 4AM
pneumatic motor for effortless operation.

HOSE TYPE Supplied with or
without hose
MEDIA As per your hose type

CONSTRUCTION Carbon Steel A19480300
MATERIALS 304 Stainless Steel SHOWN WITH ROLLER GUIDE AND
GEAR GUARD RIGHT HAND REEL
316 Stainless Steel FEATURES
Aluminium S ?
FINISH Powder Coated AUSTRALIANAN HEAVY DUTY MOTOR MOTO CUSTOM
ST
AU
RA
LI
MADE
STEEL DRIVEN
OPTIONS

Galvanized
OPTIONAL EXTRAS 4 way roller guides C SERIES PNEUMATIC MOTOR DRIVEN
Gear guard
Friction brake Hose
Extra heavy duty Model Hose ID Capacity (mm) Capacity (m) Max PSI Overall Width (G)
wrap spreaders*
Wall mount swivel A6480150 6 60 5000 370
bracket A6480300 6 140 5000 520
Standard construction material is carbon steel. A6480450 6 240 5000 670
*Note: we recommend heavy duty wrap spreaders
for pressures above 2000 psi. A6480600 6 300 5000 820
A10480150 10 40 5000 370
A10480300 10 100 5000 520
A10480450 10 145 5000 670
DIMENSIONS A10480600 10 200 5000 820
A12480150 12 30 5000 370
A 6 480 150
A12480300 12 60 5000 520
{
Series Hose ID Overall Wrap A12480450 12 100 5000 670
{
{
{
(mm) depth (B) width (F)
A12480600 12 130 5000 820
A19480150* 19 15 5000 640
A19480300 19 30 5000 520
A = 550mm A19480450 19 40 5000 670
19
60
A19480600
820
5000
3000
520
20
25
A25480300
A25480450 25 30 3000 670
F +50mm A25480600 25 45 3000 820
G 480
B A38640350* 32 - 38 20 1500 640
Detailed dimensional drawings available on request.
Quote drawing number ST11093-A.1 *CH Series Dimensions:
A = 680mm, B = 560mm, F = 350mm, G = 640mm
= Quick Ship Item, see inside back cover for
more information.
