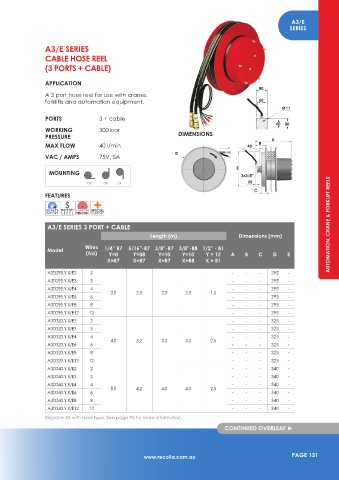

Page 133 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

A3/E
SERIES

A3/E SERIES

CABLE HOSE REEL
(3 PORTS + CABLE)

APPLICATION
80
A 3 port hose reel for use with cranes,
forklifts and automation equipment. 60
O 11
PORTS 3 + cable
60 80
WORKING 300 bar
PRESSURE DIMENSIONS A
MAX FLOW 40 l/min 40 B

VAC / AMPS 75V, 5A D
E
MOUNTING 3x3/8”

OK OK OK 20
C
FEATURES
S +
QUALITY HEAVY DUTY CONSTANT SPECIAL
IMPORT STEEL TENSION PURPOSE
A3/E SERIES 3 PORT + CABLE AUTOMATION, CRANE & FORKLIFT REELS
Length (m) Dimensions (mm)

Model Wires 1/4” R7 5/16”-R7 3/8”-R7 3/8”-R8 1/2” - B1 A B C D E
(No)
Y=0
Y=10
Y = 12
Y=08
Y=10
X=R7 X=R7 X=R7 X=R8 X = B1
A3D295.Y.X/E2 2 - - - 295 -
A3D295.Y.X/E3 3 - - - 295 -
A3D295.Y.X/E4 4 - - - 295 -
3.0 2.3 2.3 2.3 1.5
A3D295.Y.X/E6 6 - - - 295 -
A3D295.Y.X/E8 8 - - - 295 -
A3D295.Y.X/E12 12 - - - 295 -
A3D320.Y.X/E2 2 - - - 325 -
A3D320.Y.X/E3 3 - - - 325 -
A3D320.Y.X/E4 4 - - - 325 -
4.0 3.2 3.3 3.3 2.5
A3D320.Y.X/E6 6 - - - 325 -
A3D320.Y.X/E8 8 - - - 325 -
A3D320.Y.X/E12 12 - - - 325 -
A3D340.Y.X/E2 2 - - - 340 -
A3D340.Y.X/E3 3 - - - 340 -
A3D340.Y.X/E4 4 - - - 340 -
5.0 4.2 4.0 4.0 2.5
A3D340.Y.X/E6 6 - - - 340 -
A3D340.Y.X/E8 8 - - - 340 -
A3D340.Y.X/E12 12 - - - 340 -
Replace XX with hose type. See page 95 for more information.
CONTINUED OVERLEAF ►
