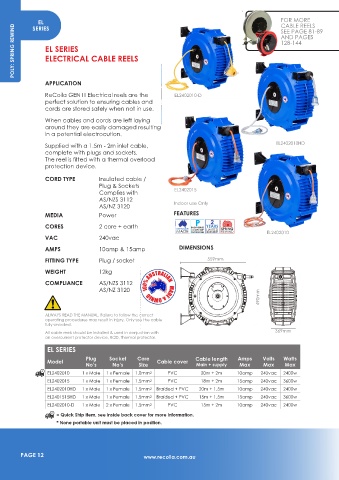

Page 14 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

EL FOR MORE
CABLE REELS
SERIES
POLY: SPRING REWIND EL SERIES AND PAGES
SEE PAGE 81-89
128-144

ELECTRICAL CABLE REELS

APPLICATION

ReCoila GEN III Electrical reels are the EL2402010-D
perfect solution to ensuring cables and
cords are stored safely when not in use.

When cables and cords are left laying
around they are easily damaged resulting
in a potential electrocution.

Supplied with a 1.5m - 2m inlet cable, EL2402010HD
complete with plugs and sockets.
The reel is fitted with a thermal overload
protection device.
CORD TYPE Insulated cable /
Plug & Sockets
Complies with EL2402015
AS/NZS 3112
AS/NZ 3120 Indoor use Only
MEDIA Power FEATURES
P
2
CORES 2 core + earth AU ST RA LI ENGINEERED YEARS
AUSTRALIANAN
POLYPROPYLENE
MADE COMPOSITE LIMITED SPRING EL2402010
WARRANTY REWIND

VAC 240vac
AMPS 10amp & 15amp DIMENSIONS
FITTING TYPE Plug / socket 559mm
WEIGHT 12kg
COMPLIANCE AS/NZS 3112
AS/NZ 3120
490mm

ALWAYS READ THE MANUAL. Failure to follow the correct
operating procedures may result in injury. Only use the cable
fully uncoiled.
All cable reels should be installed & used in conjuction with 369mm
an overcurrent protector device, RCD, thermal protector.

EL SERIES
Model Plug Socket Core Cable cover Cable length Amps Volts Watts
No’s No’s Size Main + supply Max Max Max
EL2402010 1 x Male 1 x Female 1.0mm 2 PVC 20m + 2m 10amp 240vac 2400w
EL2402015 1 x Male 1 x Female 1.5mm 2 PVC 18m + 2m 15amp 240vac 3600w
EL2402010HD 1 x Male 1 x Female 1.5mm 2 Braided + PVC 20m + 1.5m 10amp 240vac 2400w
EL2401515HD 1 x Male 1 x Female 1.5mm 2 Braided + PVC 15m + 1.5m 15amp 240vac 3600w
EL2402010-D 1 x Male 2 x Female 1.5mm 2 PVC 15m + 2m 10amp 240vac 2400w
= Quick Ship Item, see inside back cover for more information.
* None portable unit must be placed in position.
