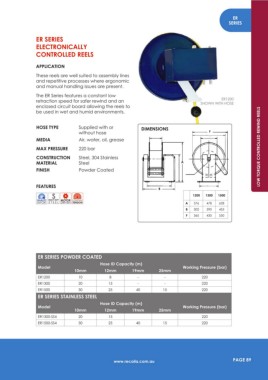

Page 91 - Catalogue2016

ER
SERIES

ER SERIES

ELECTRONICALLY
CONTROLLED REELS

APPLICATION

These reels are well suited to assembly lines
and repetitive processes where ergonomic
and manual handling issues are present.

The ER Series features a constant low
ER1200
retraction speed for safer rewind and an SHOWN WITH HOSE
enclosed circuit board allowing the reels to
be used in wet and humid environments.

HOSE TYPE Supplied with or DIMENSIONS
without hose F
MEDIA Air, water, oil, grease
MAX PRESSURE 220 bar LOW TORQUE CONTROLLED REWIND REELS

CONSTRUCTION Steel, 304 Stainless
MATERIAL Steel A
FINISH Powder Coated

FEATURES
B
S 1200 1300 1500
QUALITY HEAVY DUTY MOTOR MOTO CONSTANT
IMPORT STEEL DRIVEN TENSION A 376 478 628
B 302 390 455
F 365 430 550

ER SERIES POWDER COATED
Hose ID Capacity (m)
Model Working Pressure (bar)
10mm 12mm 19mm 25mm
ER1200 10 8 - - 220
ER1300 20 15 - - 220
ER1500 30 25 40 15 220
ER SERIES STAINLESS STEEL
Hose ID Capacity (m)
Model Working Pressure (bar)
10mm 12mm 19mm 25mm
ER1300-SS4 20 15 220
ER1500-SS4 30 25 40 15 220
