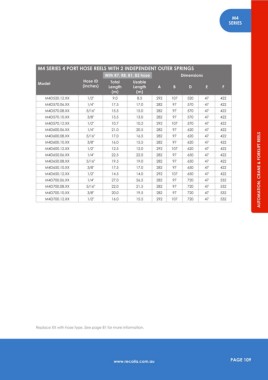

M4
SERIES

M4 SERIES 4 PORT HOSE REELS WITH 2 INDEPENDENT OUTER SPRINGS
With R7, R8, B1, B2 hose Dimensions
Model Hose ID Total Usable
(inches) Length Length A B D E F
(m) (m)
M4D520.12.XX 1/2" 9.0 8.5 292 107 520 47 422
M4D570.06.XX 1/4" 17.5 17.0 282 97 570 47 422
M4D570.08.XX 5/16" 15.5 15.0 282 97 570 47 422
M4D570.10.XX 3/8" 13.5 13.0 282 97 570 47 422
M4D570.12.XX 1/2" 10.7 10.2 292 107 570 47 422
M4D600.06.XX 1/4" 21.0 20.5 282 97 620 47 422
M4D600.08.XX 5/16" 17.0 16.5 282 97 620 47 422
M4D600.10.XX 3/8" 16.0 15.5 282 97 620 47 422
M4D600.12.XX 1/2" 12.5 12.0 292 107 620 47 422
M4D650.06.XX 1/4" 22.5 22.0 282 97 650 47 422
M4D650.08.XX 5/16" 19.5 19.0 282 97 650 47 422
M4D650.10.XX 3/8" 17.5 17.0 282 97 650 47 422 AUTOMATION, CRANE & FORKLIFT REELS
M4D650.12.XX 1/2" 14.5 14.0 292 107 650 47 422
M4D700.06.XX 1/4" 27.0 26.5 282 97 720 47 532
M4D700.08.XX 5/16" 22.0 21.5 282 97 720 47 532
M4D700.10.XX 3/8" 20.0 19.5 282 97 720 47 532
M4D700.12.XX 1/2" 16.0 15.5 292 107 720 47 532

Replace XX with hose type. See page 81 for more information.
