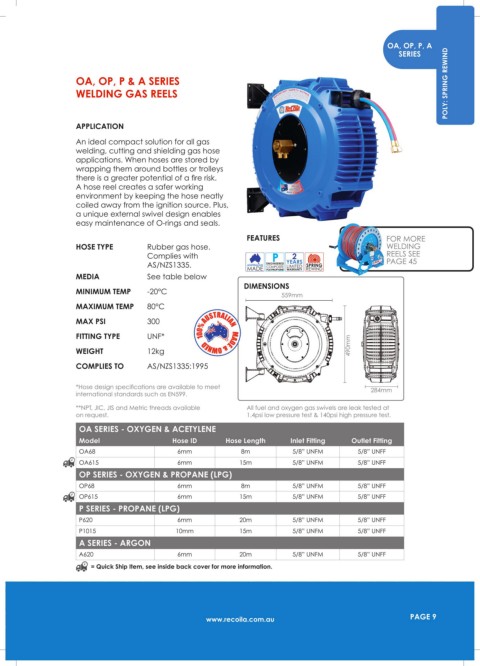

Page 9 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

OA, OP, P, A
POLY: SPRING REWIND
SERIES

OA, OP, P & A SERIES
WELDING GAS REELS

APPLICATION
An ideal compact solution for all gas
welding, cutting and shielding gas hose
applications. When hoses are stored by
wrapping them around bottles or trolleys
there is a greater potential of a fire risk.
A hose reel creates a safer working
environment by keeping the hose neatly
coiled away from the ignition source. Plus,
a unique external swivel design enables
easy maintenance of O-rings and seals.
FEATURES FOR MORE
HOSE TYPE Rubber gas hose. WELDING
Complies with P 2 REELS SEE
AS/NZS1335. AUSTRALIANAN ENGINEERED YEARS PAGE 45
LIMITED SPRING
AU
LI
ST
RA
COMPOSITE
MADE
POLYPROPYLENE
WARRANTY REWIND

MEDIA See table below
DIMENSIONS
MINIMUM TEMP -20°C 559mm
MAXIMUM TEMP 80°C
MAX PSI 300
FITTING TYPE UNF*
WEIGHT 12kg 490mm
COMPLIES TO AS/NZS1335:1995

*Hose design specifications are available to meet 284mm
international standards such as EN599.
**NPT, JIC, JIS and Metric threads available All fuel and oxygen gas swivels are leak tested at
on request. 1.4psi low pressure test & 140psi high pressure test.
OA SERIES - OXYGEN & ACETYLENE
Model Hose ID Hose Length Inlet Fitting Outlet Fitting
OA68 6mm 8m 5/8” UNFM 5/8” UNFF
OA615 6mm 15m 5/8” UNFM 5/8” UNFF
OP SERIES - OXYGEN & PROPANE (LPG)
OP68 6mm 8m 5/8” UNFM 5/8” UNFF
OP615 6mm 15m 5/8” UNFM 5/8” UNFF
P SERIES - PROPANE (LPG)

P620 6mm 20m 5/8” UNFM 5/8” UNFF
P1015 10mm 15m 5/8” UNFM 5/8” UNFF
A SERIES - ARGON
A620 6mm 20m 5/8” UNFM 5/8” UNFF
= Quick Ship Item, see inside back cover for more information.

www.recoila.com.au PAGE 9
