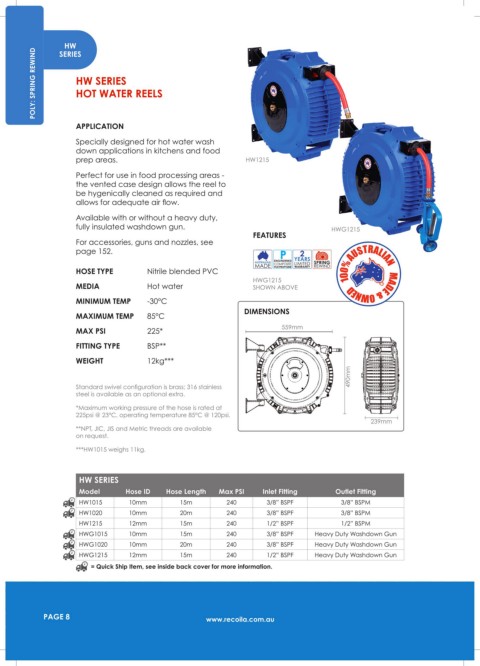

Page 8 - Recoila Hose and Cord Reels Catalogue - 23rd Edition

HW
SERIES
POLY: SPRING REWIND HW SERIES

HOT WATER REELS

APPLICATION
Specially designed for hot water wash
down applications in kitchens and food
prep areas. HW1215
Perfect for use in food processing areas -
the vented case design allows the reel to
be hygenically cleaned as required and
allows for adequate air flow.
Available with or without a heavy duty,
fully insulated washdown gun. HWG1215
FEATURES
For accessories, guns and nozzles, see
page 152. P 2
LIMITED SPRING
AUSTRALIANAN
AU ST RA LI ENGINEERED YEARS
COMPOSITE
POLYPROPYLENE
MADE
WARRANTY REWIND
HOSE TYPE Nitrile blended PVC
HWG1215
MEDIA Hot water SHOWN ABOVE
MINIMUM TEMP -30°C
DIMENSIONS
MAXIMUM TEMP 85°C
MAX PSI 225* 559mm
FITTING TYPE BSP**
WEIGHT 12kg***
490mm

Standard swivel configuration is brass; 316 stainless
steel is available as an optional extra.
*Maximum working pressure of the hose is rated at
225psi @ 23°C, operating temperature 85°C @ 120psi.
239mm
**NPT, JIC, JIS and Metric threads are available
on request.
***HW1015 weighs 11kg.

HW SERIES
Model Hose ID Hose Length Max PSI Inlet Fitting Outlet Fitting
HW1015 10mm 15m 240 3/8” BSPF 3/8” BSPM
HW1020 10mm 20m 240 3/8” BSPF 3/8” BSPM
HW1215 12mm 15m 240 1/2” BSPF 1/2” BSPM
HWG1015 10mm 15m 240 3/8” BSPF Heavy Duty Washdown Gun
HWG1020 10mm 20m 240 3/8” BSPF Heavy Duty Washdown Gun
HWG1215 12mm 15m 240 1/2” BSPF Heavy Duty Washdown Gun
= Quick Ship Item, see inside back cover for more information.

PAGE 8 www.recoila.com.au
